Make color palette based on Alamar colors

Source: R/alamarColorPalette.R

Make color palette based on Alamar colors

alamarColorPalette(
  n,
  nReps = 1,
  tint = "lightdark",
  interpolate = FALSE,
  interpolateIndex = NULL,
  palette = 1
)

Arguments

n

number of main colors to output. For `palette=1`, maximum is 13 when `interpolate=FALSE`, and unlimited when `interpolate=TRUE`. For `palette=2`, maximum is 9 when `interpolate=FALSE`, and unlimited when `interpolate=TRUE` If n exceeds the maximum colors available, `interpolate=TRUE` will be turned on.

nReps

optional, number of sub-colors to output for each of the main colors. Useful for when there are technical replicates, for example. Function will output n*nReps total colors.

tint

optional, used when sub-colors are created. `"light"` blends main colors with white. `"dark"` blends main colors with black. `"lightdark"` (default) blends main colors with white & black.

interpolate

logical `TRUE` or `FALSE` (default). If `TRUE`, main colors are based on interpolation of the colors denoted by the interpolate_index argument.

interpolateIndex

indices of colors to interpolate. For `palette=1`, default is 1:5. For `palette=2`, default is `c(1,2,4,3,5,6)`.

palette

Which set of colors to use. Integer. `palette=1` (default) is based on the original website color palette. `palette=2` is the new palette used in the NULISA manuscript. `palette=3` is the updated palette as of 2024 and 2025.

Value

A vector or list of vectors of colors in hex format

Examples

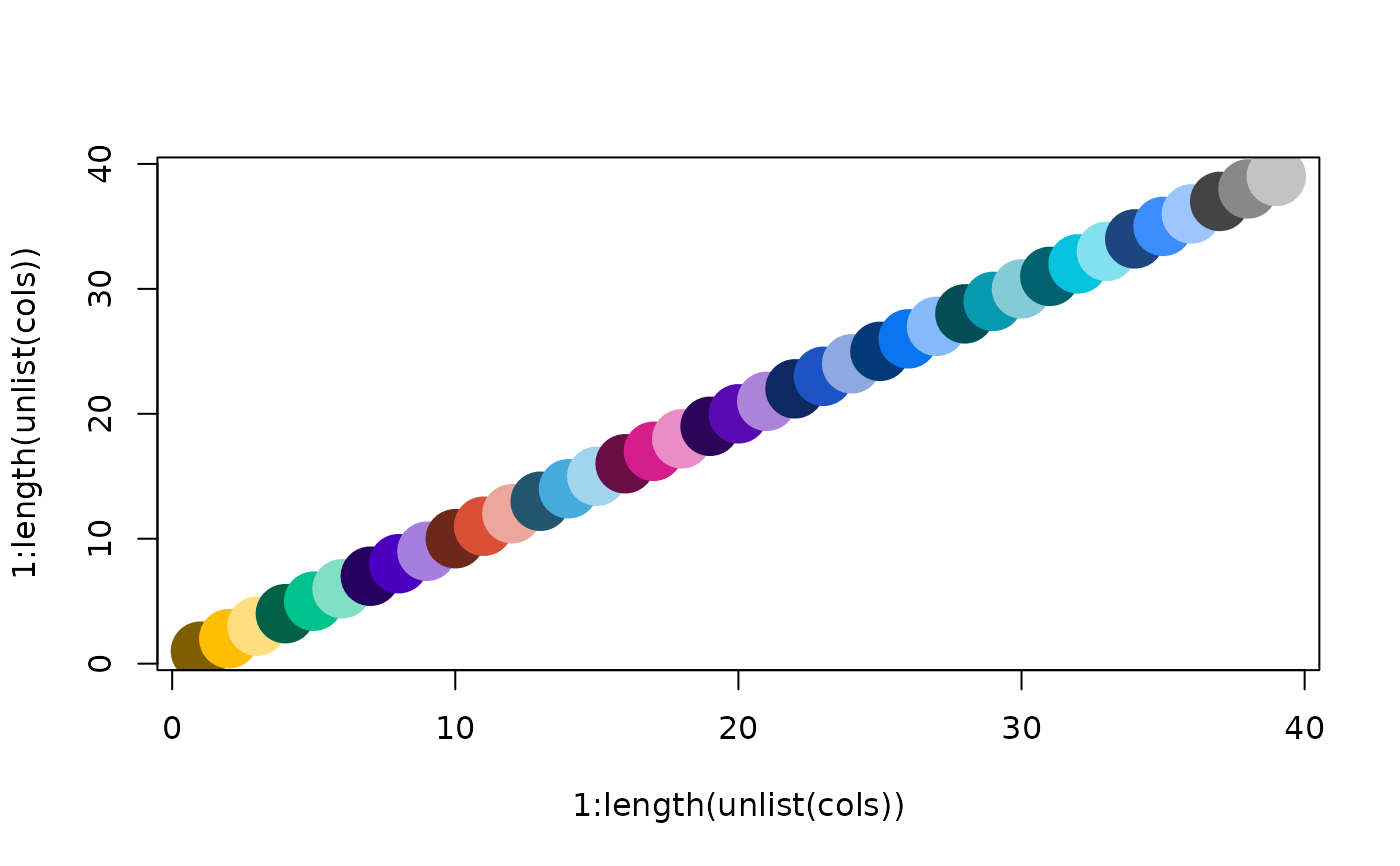

cols <- alamarColorPalette(n=13, nReps=3)
plot(1:length(unlist(cols)),
1:length(unlist(cols)), col=unlist(cols),
pch=19, cex=4)

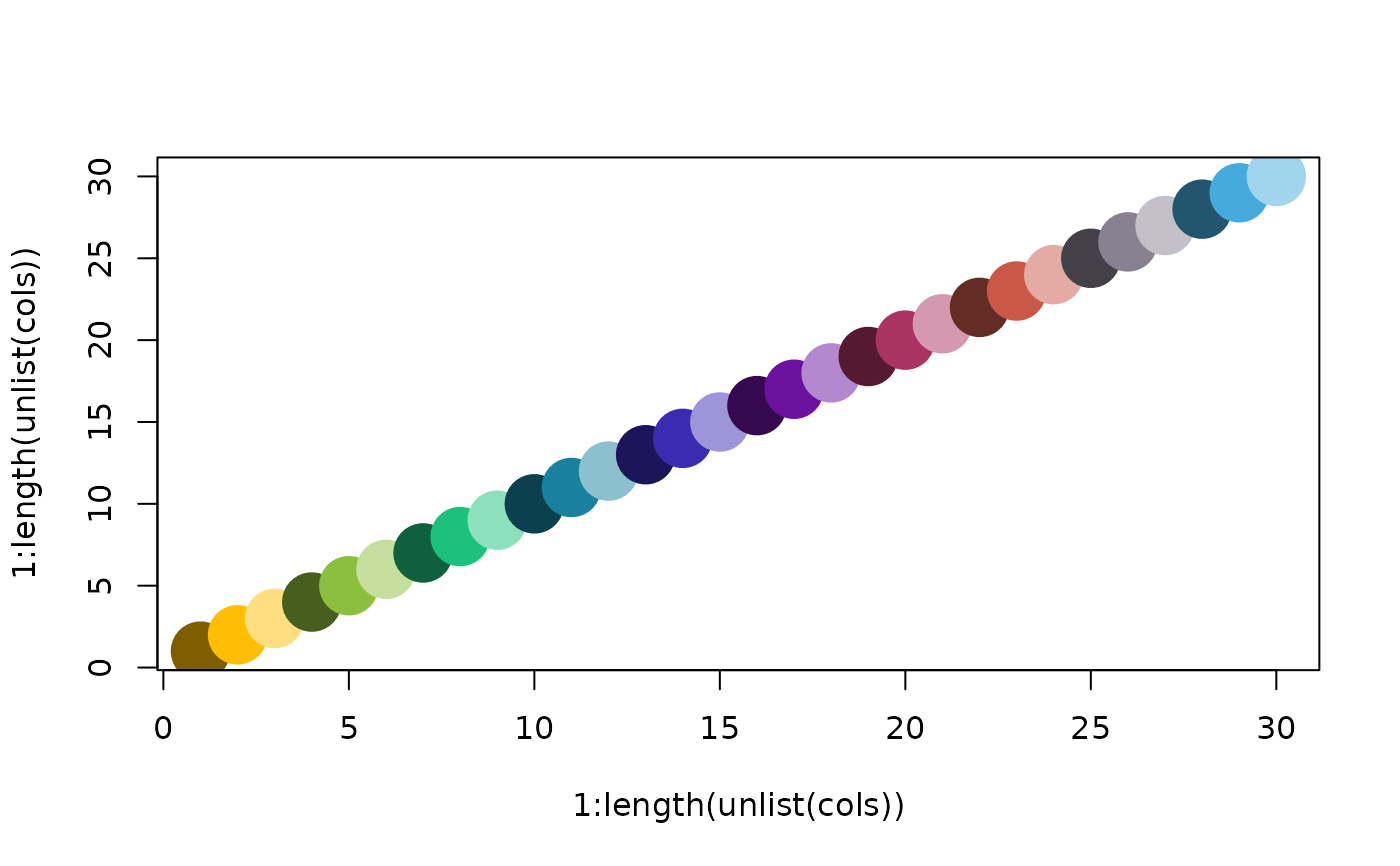

cols <- alamarColorPalette(n=10, nReps=3,
interpolate=TRUE, interpolateIndex=1:5)
plot(1:length(unlist(cols)),
1:length(unlist(cols)), col=unlist(cols),
pch=19, cex=4)
